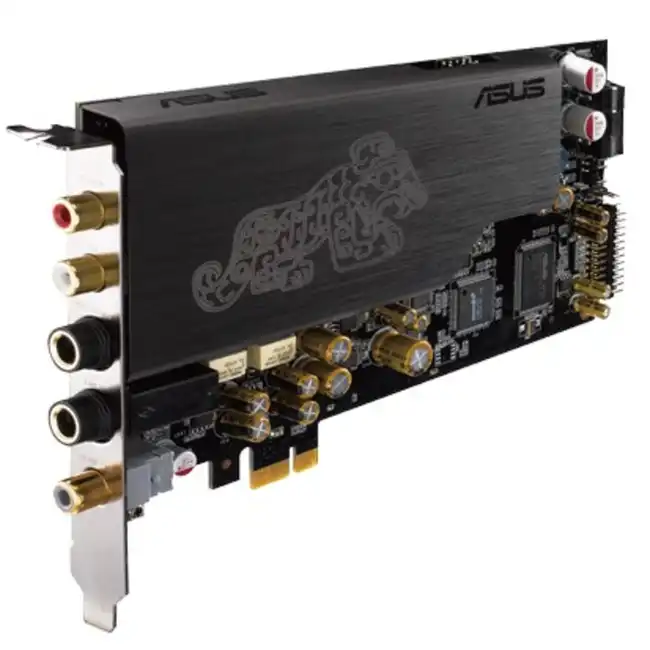

ОПИСАНИЕ / ОСОБЕННОСТИ : Звуковая карта Hi-Fi класса серии Essence ИНТЕРФЕЙС : PCI Express x1, совместимость со слотами PCI Express x4, x8, x16 АУДИО-ХАРАКТЕРИСТИКИ : Output Signal-to-Noise Ratio (A-Weighted) (Front-out) - 124 dB Output Signal-to-Noise Ratio (A-Weighted) (Headphone-out) - 120 dB Input Signal-to-Noise Ratio (A-Weighted) - 118 dB Output THD+N at 1kHz (Front-out) - >0.0003 %(-110 dB) Output THD+N at 1kHz (Headphone-out) - >0.001 %(-100 dB) Frequency Response (-3dB, 16bit/44.1KHz input) - 10 Hz to 90 KHz Output/Input Full-Scale Voltage - Line output (RCA, 3.5) 2 Vrms (5.65 Vp-p) Headphone output 7 Vrms ( Vp-p) ЧИПСЕТ : Audio Processor - ASUS AV100 High-Definition Sound Processor (Max. 192KHz/24bit) 24-bit D-A Converter of Digital Sources - Texas Instruments PCM1792A ЧАСТОТА ДИСКРЕТИЗАЦИИ / РАЗРЕШЕНИЕ : Analog Playback Sample Rate and Resolution - 44.1K/48K/96K/192KHz @ 16/24bit Analog Recording Sample Rate and Resolution - 44.1K/48K/96K/192KHz @ 16/24bit S/PDIF Digital Output - 44.1K/48K/96K/192KHz @ 16/24bit ASIO 2.0 Driver Support – 44.1K/48K/96K/176.4K/192KHz @16/24bit ФУНКЦИОНАЛЬНЫЕ ВОЗМОЖНОСТИ : Dolby Technologies - Dolby Digital Live, Dolby Headphone, Dolby Virtual Speaker, Dolby Pro-Logic II РАЗЪЕМЫ / ПОРТЫ : Analog Output - 1 x 6.3 mm jack (1/4") Headphone out 2 x RCA (Un-Balanced) Analog Input - 1 x 6.3 mm jack (1/4") (Line-in/ Mic-in combo) Digital - 1 x S/PDIF out (1 x Coaxial) 1 x Front-Panel Header ПОДДЕРЖИВАЕМЫЕ ОС : Windows 8.1/8/7/XP КОМПЛЕКТИЦИЯ : 1 x Op-amp swap kit 1 x 3.5mm-to-RCA cable 1 x S/PDIF adapter ГАБАРИТЫ : 168 x 107mm
