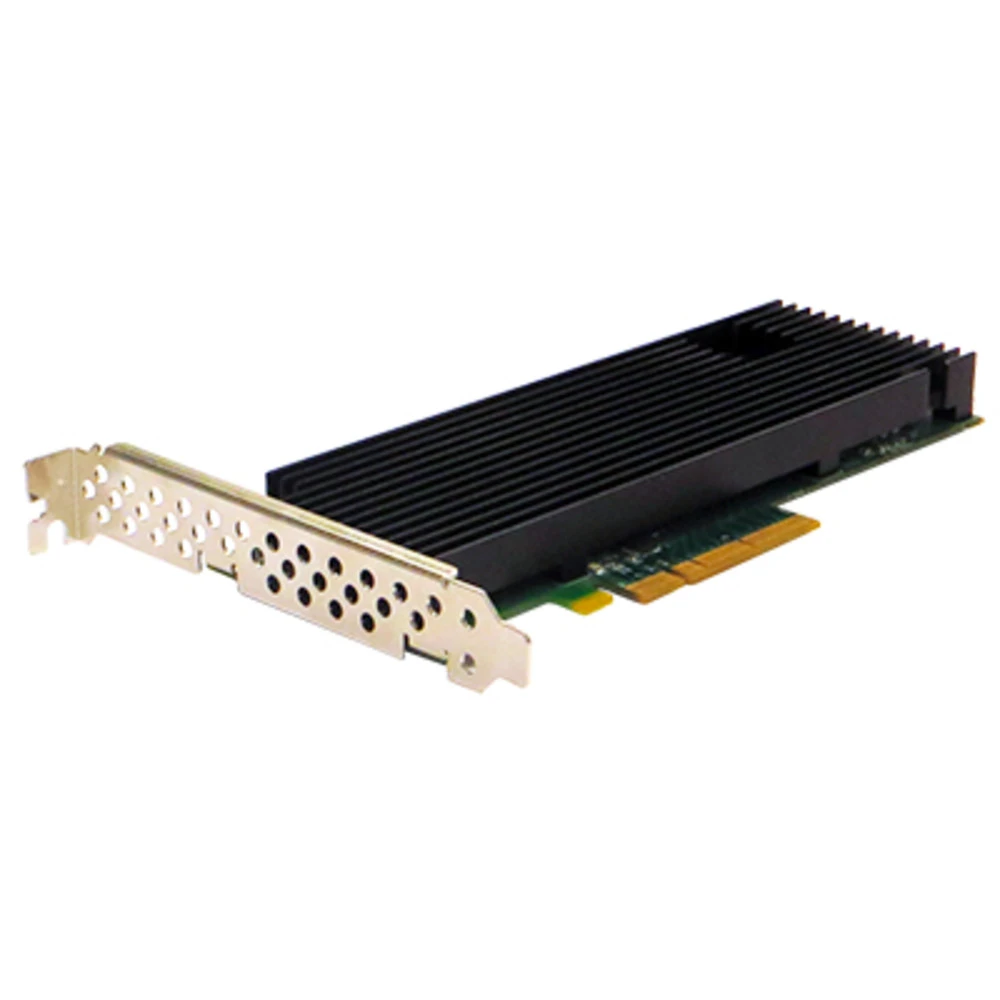

ОПИСАНИЕ/ОСОБЕННОСТИ : HW Accelerator Compression PCI Express Server Adapter ЧИП : Intel DH8925CL ИНТЕРФЕЙС : PCI-E (2.0) x8 ПОРТЫ / РАЗЪЕМЫ : нет ПРОИЗВОДИТЕЛЬНОСТЬ : Intel Quick Assist Techinlogoy Capability – 25Gbps IPSec – 25Gbps SSL – 25Gbps Compression - 12G Kasumi/ Snow3G - Up to 30Gbps RSA Decrypt 1k-bit - 100K (ops/sec) RSA Decrypt 2k-bit - 20K (ops/sec) ИНДИКАТОРЫ : нет УПРАВЛЕНИЕ : n/a ПРОТОКОЛЫ : FCC Part 15, Subpart B Class A Conducted Emissions Radiated Emissions CE EN 55022 - 1998 Class A Amendments A1 — 2000, A2 - 2003 Conducted Emissions Radiated Emissions CE EN 55024 - 1998 Amendments A1 — 2000, A2 - 2003 Immunity for ITE Amendment A1 - 2001 CE EN 61000-3-2 2000, Class A Harmonic Current Emissions CE EN 61000 3-3 1995, Amendment A1 - 2001 Voltage Fluctuations and Flicker CE IEC 6100-4-2 - 1995 ESD Air Discharge 8kV. Contact Discharge 4kV. CE IEC 6100-4-3 -1995 Radiated Immunity (80-1000Mhz), 3V/m 80% A.M. by 1kHz CE IEC 6100-4-4 -1995 EFT/B: Immunity to electrical fast transients 1kV Power Leads, 0.5Kv Signals Leads CE IEC 6100-4-5 -1995 Immunity to conductive surges COM Mode; 2kV, Dif. Mode 1kV CE IEC 6100-4-6 - 1996 Conducted immunity (0.15-80 MHz) 3VRMS 80% A.M. By 1kHz CE IEC 6100-4-11 - 1994 Voltage Dips and Short Interruptions V reduc >95%, 30% >95% Duration 0.5per, 25per, 250per ПОДДЕРЖКА ОС: Windows, Linux, Free BSD, VMware ПОТРЕБЛЕНИЕ ЭНЕРГИИ : до 6.12W КОМПЛЕКТ ПОСТАВКИ : инструкция по установке ГАБАРИТЫ : 167.64 x 68.91 мм
