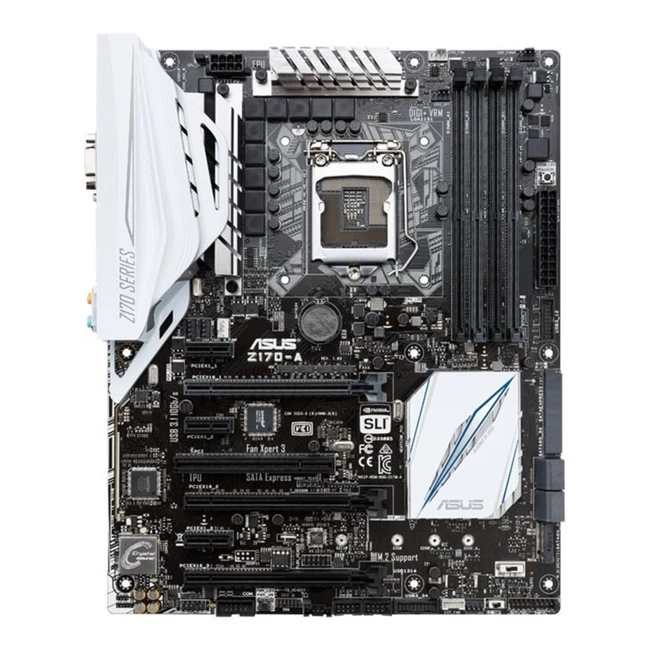

Материнская плата Asus Z170-A

Intel® Socket 1151 for 6^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

Intel® Z170

4 x DIMM, Max. 64Гб, DDR4 3400(O.C.)/3333(O.C.)/3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2400(O.C.)/2133(O.C.) MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture

Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 512 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 3 displays simultaneously
DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays

Supports NVIDIA® Quad-GPU SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology

2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1
3 x PCIe 3.0/2.0 x1
1 x PCI

Intel® Z170 chipset :
1 x SATA Express port, compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 x4 Socket 3, *2, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*3
6 x SATA 6Gb/s port(s), (Gray)
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology*4

Intel® I219V, 1 x Gigabit LAN Controller(s),
Gigabit Intel® LAN Connection- 802.3az Energy Efficient Ethernet (EEE) appliance
ASUS Turbo LAN Utility
ASUS LAN Guard

Realtek® ALC892 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- DTS Connect
- DTS Studio Sound
- Optical S/PDIF out port(s) at back panel
- LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
- Top notch audio sensation delivers according to the audio configuration
- EMI protection cover to prevent electrical noise to affect the amplifier quality
- Absolute Pitch 192khz/24bit true BD lossless sound
- Power pre-regulator: Reduces power input noise to ensure consistent performance
Separate layer for left and right track, ensuring both sound deliver equal quality

Intel® Z170 chipset :
6 x USB 3.1 Gen 1 port(s) (2 at back panel, (Blue), 4 at mid-board)
Intel® Z170 chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
ASMedia® USB 3.1 controller :
1 x USB 3.1 Gen 2 port(s) (1 at back panel, , USB Type-C^TM)
ASMedia® USB 3.1 controller :
1 x USB 3.1 Gen 2 port(s) (1 at back panel, teal blue, Type-A)

OC Design - ASUS PRO Clock Technology
- Full BCLK range for extreme overclocking performance
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
ASUS 5X Protection :
- ASUS DIGI+ VRM - 8 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
ASUS TPU :
- Auto Tuning
- GPU Boost
- TPU switch
ASUS EPU :
- EPU
ASUS Digital Power Design :
- Industry leading Digital 8 Phase Power Design
- CPU Power Utility
ASUS Exclusive Features :
- Remote GO!
- USB BIOS Flashback
- AI Suite 3
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.1 Boost
- Disk Unlocker
- Turbo LAN
- Crystal Sound 3
- EZ XMP ASUS Exclusive Features
- Mobo Connect
- PC Cleaner
Remote Entertainment
- Media Streamer
- HyStream
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
ASUS EZ DIY :
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Special Memory O.C. Design
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Media Streamer
Turbo App
Fan Xpert 3

Windows 7
Windows® 10 64bit
Windows® 8.1 64bit

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.1 Gen 2 ()USB Type-C^TM
1 x USB 3.1 Gen 2 (teal blue)Type-A
2 x USB 3.1 Gen 1 ((Blue))
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)

2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x SATA Express connector: , compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3
1 x TPM header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
4 x Chassis Fan connector(s) (4 x 4 -pin)
1 x S/PDIF out header(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x EZ XMP switch
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x DRCT header(s)
1 x MemOK! button(s)
1 x TPU switch(es)
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x USB BIOS Flashback Card header
1 x Water Pump header (4-pin)
1 x 14-1 pin TPM connector

User's manual
I/O Shield
3 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x CPU installation tool
1 x SLI bridge(s)
1 x Q-connector(s) (1 in 1)

128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information

WfM 2.0, DMI 3.0, WOL by PME, PXE

Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)

ATX Form Factor
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
