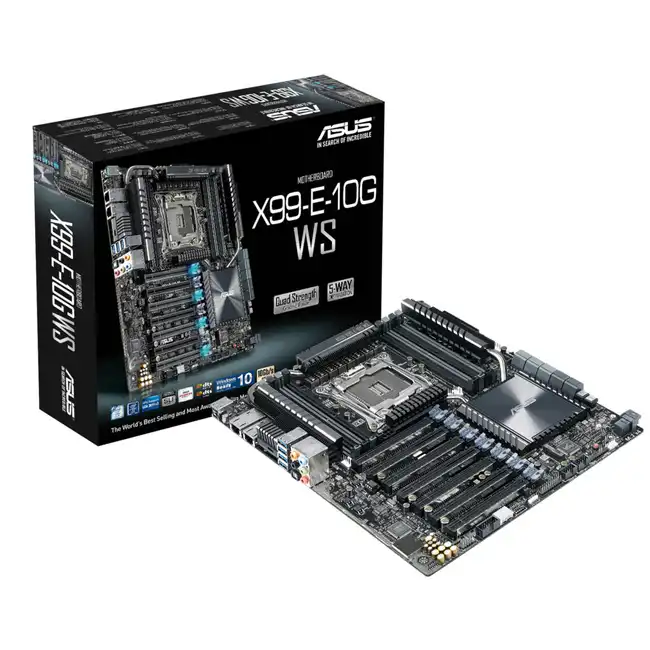

Материнская плата Asus X99-E-10G WS (CEB, LGA 2011)

Intel® X99

8 x DIMM, Max. 128Гб, DDR4 3333(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory *1
8 x DIMM, Max. 128Гб, DDR4 2400/2133 MHz ECC, Un-buffered Memory *2
8 x DIMM, Max. 128Гб, DDR4 2400/2133 MHz ECC, Register Memory *2
Четырехканальная Memory Architecture
*Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Supports Intel® Extreme Memory Profile (XMP)
*Refer to www.asus.com or this user manual for the Memory QVL (Qualified Vendors Lidts).

Supports NVIDIA® 4-Way SLI™ Technology
Supports AMD 4-Way CrossFireX Technology

7 x PCIe 3.0/2.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8)

Intel® X99 chipset : *3
1 x U.2 connector*4,
1 x M.2 x4 Socket 3*4, , with M Key, type 2260/2280 storage devices support (PCIE mode)
10 x SATA 6Gb/s port(s), *5
Intel® Rapid Storage Technology supports*6

Intel® X550-AT2 10, 2 x Gigabit LAN ports

Realtek® ALC1150 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR stereo playback input (Line-in)
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- DTS Connect
- DTS Studio Sound
- Optical S/PDIF out port(s) at back panel
- BD Audio Layer Content Protection
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
- Top notch audio sensation delivers according to the audio configuration
- Power pre-regulator: Reduces power input noise to ensure consistent performance
Separate layer for left and right track, ensuring both sound deliver equal quality

Intel® X99 chipset :
8 x USB 3.1 Gen 1 port(s) (4 at back panel, )
Intel® X99 chipset :
4 x USB 2.0/1.1 port(s) (4 at mid-board)
ASMedia® USB 3.1 controller :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-C^TM)

7 x PCIe x 16 slot(s)
ProCool Power Connector
ASUS PIKE SAS upgrade kit(Опционально)

2 x USB 3.1 Type-A + USB Type-C^TM
4 x USB 3.1 Gen 1 ((Blue))
1 x Optical S/PDIF out
5 x Audio jack(s)
2 x Intel 10G LAN (BASE-T) Ports

1 x RGB Header(s)
2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 for M Key, type 2260/2280 devices
1 x TPM connector(s)
10 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (4 x -pin)
1 x S/PDIF out header(s)
2 x 8-pin EATX 12 V Power connector
1 x 6-pin EATX 12 V_1 Power connector(s)
1 x 24-pin EATX Power connector(s)
1 x EZ XMP switch
1 x Front panel connector(s)
1 x System panel(s) (Q-Connector)
1 x DRCT header(s)
1 x MemOK! button(s)
1 x CPU OV
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS button(s)
1 x SLI/CFX switch (2/3-WAY adjustments)
1 x USB BIOS Flashback button(s)
1 x Water Pump header (4-pin)
1 x 3-pin CHASSIS(Chassis intrusion) connector
1 x COM port header
1 x U.2 Connector (support U.2 NVMe device)
1 x High AMP Fan Header
1 x T_Sensor Connector

User's manual
I/O Shield
1 x COM port cable(s)
10 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x 3-Way SLI bridge(s)
1 x 4-Way SLI bridge(s)
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
1 x 2-port USB 2.0 module(s)
1 x Extension Cable for RGB strips (80 cm)

128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS,
ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log,
F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.

WfM 2.0, DMI 2.7, WOL by PME, PXE

Drivers、ASUS Utilities、EZ Update 、Anti-virus software (OEM version)

Windows® 10
Windows® 8.1 64-bit
Windows® 7 64-bit

CEB Form Factor
12 inch x 10.5 inch ( 30.5 cm x 26.7 cm )

Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
