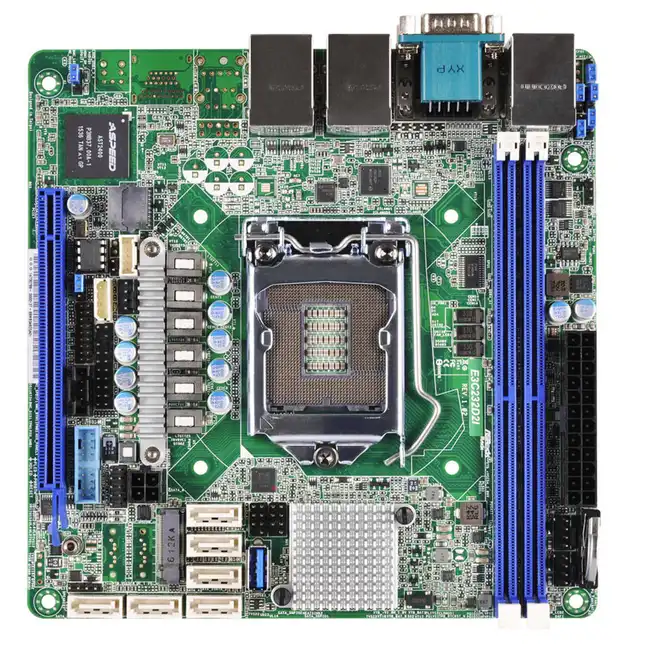

Форм-фактор
|
- Mini ITX |
Габариты
|
- 6.7'' x 6.7'' (17.02 cm x17.02 cm) |
CPU
|
- Intel® Xeon® E3-1200 v5/v6 Series Processors
*BIOS version 2.0 or above is required for v4 series |
Чипсет
|
- Intel® C232 |
Емкость
|
- 2 x DDR4 DIMM slots |
Тип
|
- Dual Channel DDR4 memory technology
- Supports DDR4 2400*/2133/1866/1600 ECC UDIMM memory
- Max. capacity of system memory:32 GB |
DIMM Size Per DIMM
|
- ECC UDIMM : 16GB, 8GB, 4GB |
Напряжение
|
- 1.2V |
PCIe 3.0 x 16
|
- 1 slot |
Контроллер SATA
|
- C232: 6x SATA3 6Gb/s (SATA0 share with M.2 connector), support RAID 0, 1, 5, 10 |
Интерфейс
|
- 1000 /100 /10 Mbps |
Контроллер LAN
|
- 2 x RJ45 GLAN by Intel® i210+Intel® i219
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 supports NCSI |
Контроллер BMC
|
- ASPEED AST2400 |
IPMI Dedicated GLAN
|
- 1 x Realtek RTL8211E for dedicated management GLAN |
Функции
|
- Watch Dog
- NMI |
Контроллер
|
- ASPEED AST2400 |
VRAM
|
- DDR3 256MB (ASPEED) |
Порт VGA
|
- 1 x D-Sub(From ASPEED AST2400) |
Порты USB 2.0
|
- 2 |
Порты USB 3.0
|
- 4 |
Порт Lan
|
- RJ45: 2x GLAN(by Intel® i210+Intel® i219)
- LAN Ports with LED (ACT/LINK LED and SPEED LED) |
Dedicate LAN
|
- RT8211E
- 1 x RJ45 Dedicated IPMI LAN port |
Последовательный порт
|
- 1 (COM1) |
M.2
|
- 1 |
Auxiliary Panel Header
|
- 1 (include chassis intrusion, location button & LED, front LAN LED, event log LED) |
TR1 Header
|
- 1 |
TPM
|
- 1 |
IPMB
|
- 1 |
Вентилятор
|
- 3(CPU/Front/Rear) |
Питание ATX
|
- 1x (24-pin) + 1x (4-pin) |
USB 3.0 Header
|
- 1 (2 ports) |
Порт USB 2.0 тип А
|
- 1 |
PSU SMB Header
|
- 1 |
NMI Button
|
- 1 |
Динамик
|
- 1 |
SGPIO Header
|
- 2 |
PECI
|
- 1 |
PMBUS Mode Jumpers
|
- 3 |
SMBUS from BMC
|
- 1 |
ME/SPS Recovery
|
- 1 |
Clear CMOS
|
- 1 (short pin) |
Тип BIOS
|
- 128Mb AMI UEFI Legal BIOS |
Особенности BIOS
|
- Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8.0 Support
- ASRock Rack Instant Flash |
Температура
|
- CPU/PCH Temperature Sensing
- MB/Card side/TR1 Temperature Sensing |
Вентилятор
|
- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control |
Напряжение
|
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, VCCSA, VCCM, V1.0M, VCCIO, VCCST_SFR, VPPM, +BAT, 3VSB, ATX+5VSB |
ОС
|
Microsoft® Windows®
Linux |
Температура
|
Operation temperature Range: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
