Материнская плата Asus H110M-D D3

ASUS H110M-D  RTL Материнская плата { Soc-1151 Intel H110 2xDDR4 mATX AC`97 8ch(7.1) GbLAN+VGA+HDMI}

• Чипсет

  Intel® H110

• Оперативная память

  2 x DIMM, Max. 32Гб, DDR3 1866(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  *Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  Supports Intel® Extreme Memory Profile (XMP)
  *Refer to www.asus.com or this user manual for the Memory QVL (Qualified Vendors Lidts).
  * The maximum memory frequency supported varies by processor.

• Графика

  Integrated Graphics Processor- Intel® HD Graphics support
  Multi-VGA output support : HDMI/RGB ports
  - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 1024 MB
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

• Слоты расширения

  1 x PCIe 3.0/2.0 x1 (x16 mode)
  2 x PCIe 2.0 x1

• Хранилище данных

  Intel® H110 Chipset :
  4 x SATA 6Gb/s port(s), (Gray),

• Локальная сеть

  Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

• Аудио

  Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC
  - Supports : Jack-detection, Front Panel Jack-retasking
  Audio Feature :
  - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
  - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

• Порты USB

  Intel® H110 chipset :
  4 x USB 3.1 Gen 1 port(s) (2 at back panel, (Blue), 2 at mid-board)
  Intel® H110 chipset :
  6 x USB 2.0/1.1 port(s) (2 at back panel, (Black), 4 at mid-board)

• Эксклюзивные особенности

  ASUS EPU :
  - EPU
  ASUS Exclusive Features :
  - GPU Boost
  - AI Suite 3
  - Ai Charger
  - Anti-Surge
  - Low EMI Solution
  - USB 3.0 Boost
  - EZ XMP ASUS Exclusive Features
  - Mobo Connect
  - PC Cleaner
  ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-sink solution
  - ASUS Fan Xpert
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
  - Push Notice
  ASUS Q-Design :
  - ASUS Q-Slot
  - ASUS Q-DIMM
  Media Streamer

• Поддержка операционной системы

  Windows 7 32-битная/64-битная
  Windows® 10 64-битная
  Windows® 8.1 64-битная

• Разъемы на задней панели

  1 x PS/2 keyboard/mouse combo port(s)
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  2 x USB 3.1 Gen 1 ((Blue))
  2 x USB 2.0
  1 x COM port(s)
  1 x Parallel port(s)
  3 x Audio jack(s)

• Разъeмы на плате

  1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin, blue)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  4 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x Chassis Fan connector(s) (1 x 4 -pin)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 4-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s) (Chassis intrusion header is inbuilt)
  1 x Clear CMOS jumper(s)
  1 x 14-1 pin TPM connector

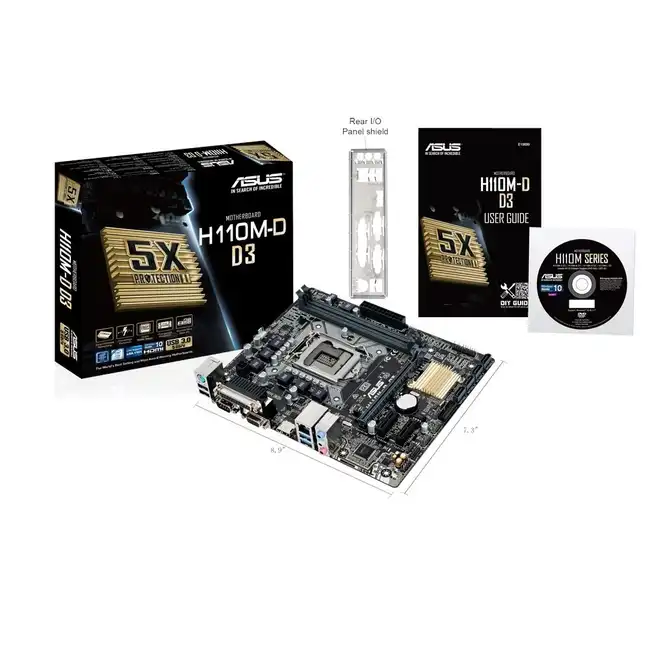

• Аксессуары

  User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x Supporting DVD

• BIOS

  128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS,
  ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

• Администрированиe

  WfM 2.0, DMI 3.0, WOL by PME, PXE

• Диск с драйверами

  Drivers
  ASUS Utilities
  ASUS EZ Update
  Anti-virus software (OEM version)

• Форм-фактор

  uATX Form Factor
  8.9 inch x 7.3 inch ( 22.62 cm x 18.55 cm )
