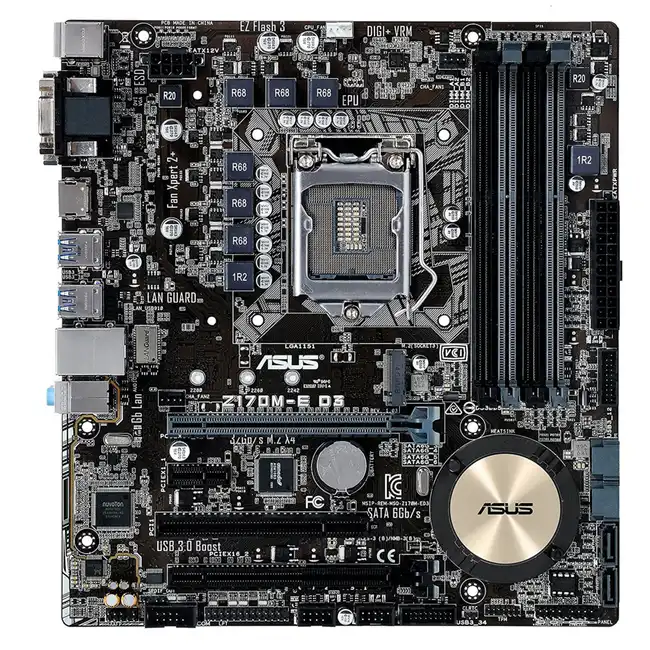

Материнская плата Asus Z170M-E D3 (uATX, LGA 1151)

ASUS Z170M-E D3 RTL Socket 1151 Z170 4xDDR3 2xPCI-E 16x 1xPCI 1xPCI-E 1x 4xSATAIII mATX Retail

• Чипсет

  Intel® Z170

• Оперативная память

  4 x DIMM, Max. 64Гб, DDR3 3100(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
  *Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  Supports Intel® Extreme Memory Profile (XMP)
  *Refer to www.asus.com or this user manual for the Memory QVL (Qualified Vendors Lidts).

• Графика

  Integrated Graphics Processor- Intel® HD Graphics support
  Multi-VGA output support : HDMI/DVI-D/RGB ports
  - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 1024 MB
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  Supports up to 3 displays simultaneously

• Поддержка технологий Multi-GPU

  Supports AMD CrossFireX™ Technology

• Слоты расширения

  1 x PCIe 3.0/2.0 x16 (x16 mode, (Gray))
  1 x PCIe 3.0/2.0 x16 (max at x4 mode, (Black))
  1 x PCIe 3.0/2.0 x1
  1 x PCI

• Хранилище данных

  Intel® Z170 chipset :
  1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
  4 x SATA 6Gb/s port(s), (Gray),
  Support Raid 0, 1, 5, 10
  Supports Intel® Smart Response Technology*1

• Локальная сеть

  Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

• Аудио

  Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC
  - Supports : Jack-detection, Front Panel Jack-retasking
  Audio Feature :
  - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

• Порты USB

  Intel® Z170 chipset :
  8 x USB 3.1 Gen 1 port(s) (4 at back panel, (Blue), 4 at mid-board)
  Intel® Z170 chipset :
  6 x USB 2.0/1.1 port(s) (2 at back panel, (Black), 4 at mid-board)

• Эксклюзивные особенности

  ASUS 5X Protection II :
  - ASUS LANGuard - 2.5X higher surge tolerance
  - ASUS Overvoltage Protection - World-class circuit-protecting power design
  - ASUS DIGI+ VRM - 7 Phase digital power design
  - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
  - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
  ASUS EPU :
  - EPU
  ASUS Exclusive Features :
  - GPU Boost
  - AI Suite 3
  - Ai Charger
  - Anti-Surge
  - Low EMI Solution
  - USB 3.0 Boost
  - Disk Unlocker
  - Mobo Connect
  - PC Cleaner
  ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-sink solution
  - ASUS Fan Xpert 2+
  ASUS EZ DIY :
  - ASUS O.C. Tuner
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
  - Push Notice
  ASUS Q-Design :
  - ASUS Q-Slot
  - ASUS Q-DIMM
  Media Streamer

• Поддержка операционной системы

  Windows 7 32bit/64bit
  Windows® 10 64bit
  Windows® 8.1 64bit

• Разъемы на задней панели

  1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x DVI-D
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  4 x USB 3.1 Gen 1 ((Blue)) Type-A
  2 x USB 2.0
  3 x Audio jack(s)

• Разъeмы на плате

  2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
  1 x LPT header
  1 x COM port(s) connector(s)
  4 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  2 x Chassis Fan connector(s) (2 x 4 -pin)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x Clear CMOS jumper(s)
  1 x 14-1 pin TPM connector

• Аксессуары

  User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x Supporting DVD

• BIOS

  128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS,
  ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

• Администрированиe

  WfM 2.0, DMI 3.0, WOL by PME, PXE

• Диск с драйверами

  Drivers
  ASUS Utilities
  ASUS EZ Update
  Anti-virus software (OEM version)

• Форм-фактор

  uATX Form Factor
  9.6 inch x 8.8 inch ( 24.4 cm x 22.4 cm )
