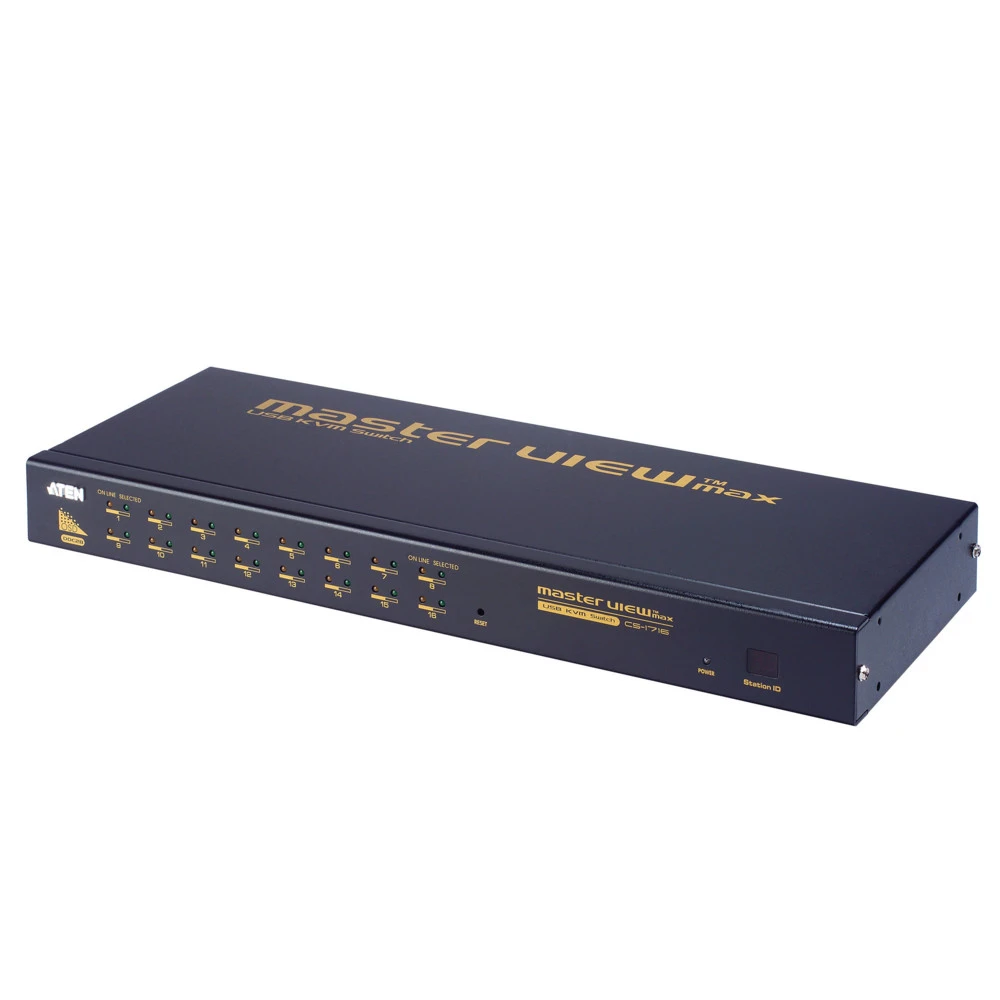

KVM-переключатель ATEN CS1716I

Direct

16

Maximum

256 (via daisy chain)

Port Selection

OSD/GUI; Hotkey; Pushbutton

Console Ports

1 x SPHD-18 Male (Yellow)

KVM Ports

16 x SPHD-17 Female (Yellow)

Daisy Chain Ports

1 x DB-25 Male

Power

1 x DC Jack

LAN Ports

1 x RJ-45 Female

Firmware Upgrade

1 x RJ-11

USB Port

1 x USB Type A Female

Reset

1 x Semi-recessed Pushbutton

Port Selection

16 x Pushbutton

Firmware Upgrade Recovery

1 x Slide

Online

16 (Orange)

Selected

16 (Green)

Station ID

1 x 2-digit, 7-segment (Orange)

Power

1 (Dark Green)

10/100 Mbps

1 (Orange/Green - at LAN port)

Keyboard / Mouse

PS/2, USB

Local

2048 x 1536; DDC2B

Remote

FHD : 1920 x 1200 @ 60Hz
Non-FHD : 1600 x 1200 @ 60Hz

Scan Interval

1–255 sec.

Power Consumption

DC5.3V:9.2W:58BTU

Operating Temperature

0–50°C

Storage Temperature

-20–60°C

Humidity

0–80% RH, Non-condensing

Housing

Metal

Weight

3.00 kg ( 6.61 lb )

Dimensions (L x W x H)

43.72 x 15.96 x 4.40 cm
(17.21 x 6.28 x 1.73 in.)
