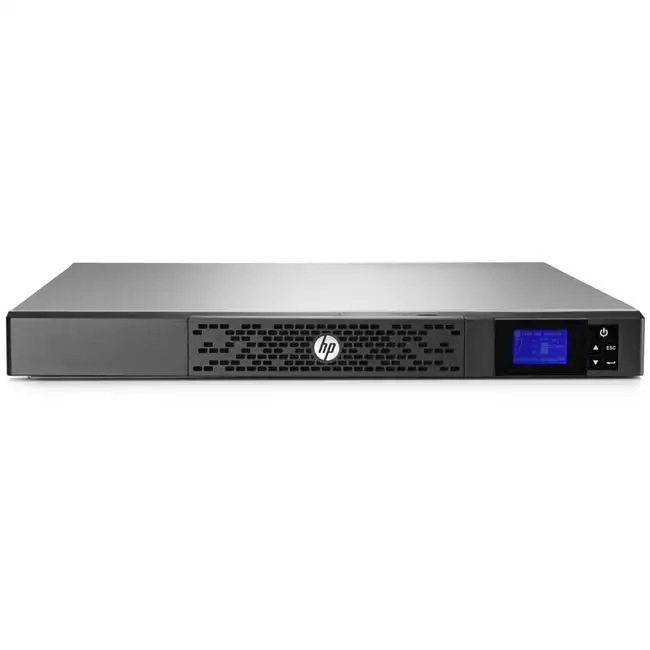

Источник бесперебойного питания HPE R1500 G4 J2R03A (1500 ВА, 1000)

ИБП HP R1500 G4 (1500ВА/1000Вт) 1U

Характеристики:

Electrical Input:
Voltage Range: ± 15% of nominal100 and 120V models and ± 20% of nominal on 230V models. See Model Matrix for nominal and user selectable voltage settings via LCD Front Display Panel
Frequency: 50/60 Hz ± 5Hz (auto sensing at default voltage )
Online Efficiency: 92%

Electrical Output:
Online Regulation: -10% to +6% of nominal voltage
On battery Regulation: -10% / + 6%of nominal voltage
Voltage Wave Form: Sine wave
Connections: See Model Matrix; divided into3 Load Segments
Output Protection: Firmware overload sensing and control

Battery:
Type: Maintenance-free, sealed, valve-regulated lead acid (VRLA)
Backup Time: See Backup Times Chart
Recharge Time: less 3 hours to 90% usable capacity; less 24 hours for complete recharge
Voltage: 36V Battery String

Communications:
Ports: Standard DB-9 port (Kit ships with cable for communication ), USB port (Kit ships with cable for communication)
Option Slot: One ( for Optional Communication Card)
Option Cards: HP UPS Network Module (Not included in Kit but orderable Option)
LED Indicators: LED display integrated into the front panel
Software: HP Power Protector management software available via download

Unit Dimensions (LxWxH): 554 x 438 x 43 mm
Shipping Dimensions: 780 x 580 x 155 mm
Unit Weight: 19.72 kg
Shipping Weight: 24.7 kg
